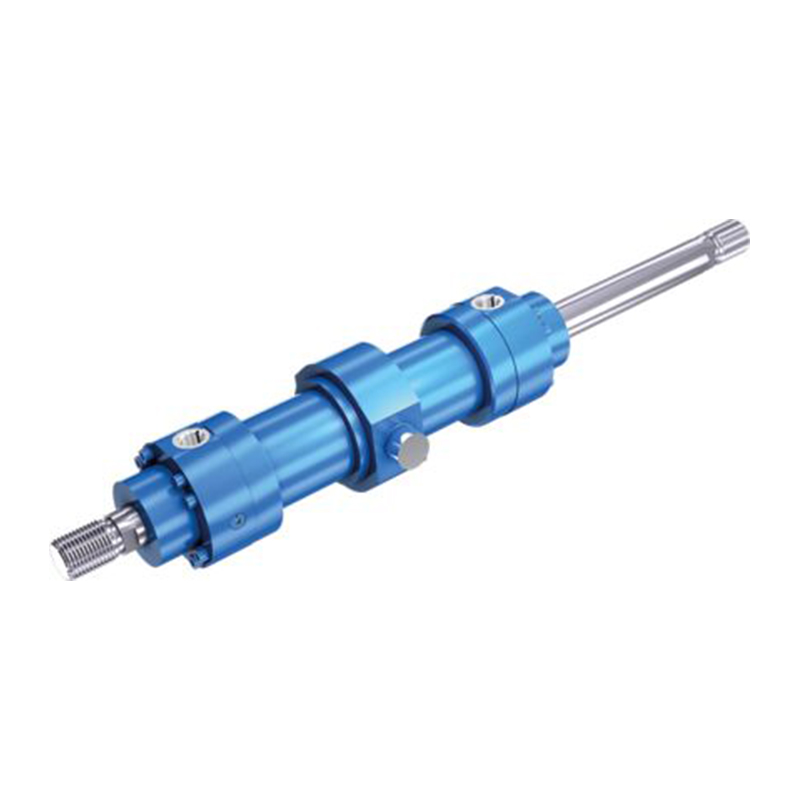

CGH1 – Double-Acting Cylinder I Mill Type

CGH1 – Double-Acting Cylinder I Mill Type

Product Parameters

Models Shown: 3 models (80–250 mm bore)

Pressure Class: 250–350 Bar

Core Value Proposition: Balanced force for caster withdrawal & strip mill coilers

Contact Us
  • CGH1 – Double-Acting Cylinder I Mill Type
PREV：CGH2 – Double-Acting Cylinder I Mill Type
NEXT：No next article
Typical Model CG 80/45-300 CG 160/90-1200 CG 250/160-2000
Standard ISO 6022 ISO 6022 ISO 6022
Bore Dia.(mm) 80 160 250
Rod Dia.(mm) 45 90 160
Stroke Range(mm) 100 – 800 200 – 2500 300 – 4000
Mounting Style Flange / Trunnion / Clevis Flange / Trunnion Flange / Trunnion (Heavy-duty)
Protection Protective Bellows Full Bellows Protection Full Protective Sleeve + Wiper
Nominal Pressure(Bar / MPa) 250 Bar / 25 MPa 250 Bar / 25 MPa 350 Bar / 35 MPa
Static Test Pressure(Bar) 375 Bar 375 Bar 525 Bar
Cylinder Body Material 27SiMn / 42CrMo Forged Cylinder Body 42CrMo Forged & Honed Cylinder Body 42CrMo Forged & Honed Cylinder Body
Piston Rod Material 42CrMo Alloy Steel 42CrMo Alloy Steel (Nitrided) 42CrMo Alloy Steel (Deep Nitrided)
Rod Surface Treatment Hard Chrome Plated (30–50 µm) Hard Chrome Plated (40–60 µm) Hard Chrome Plated (50–70 µm) + Super-finish
Rod Surface Finish (Ra) Ra ≤ 0.2 µm Ra ≤ 0.15 µm Ra ≤ 0.10 µm
Sealing System Parker Double-Acting High-pressure Seals Parker / Rexroth-Compatible Sealing System Parker / Rexroth-Compatible Sealing System
Operating Temp.(°C) -20 ~ +100 -30 ~ +120 -30 ~ +120
Fluid Compatibility Mineral Oil / Water Glycol / Phosphate Ester Mineral Oil / Water Glycol / Phosphate Ester Mineral Oil / Water Glycol / Phosphate Ester
Application Scenarios Continuous Casting Withdrawal & Straightening Hot Strip Mill Coiler, Downcoiler Mandrel Plate Mill Side Guides, Heavy Coiler Mandrels
Key Features Balanced force in both directions, servo capable High cycle rate, consistent force profile Highest CG capacity, symmetrical high-force output
