3L medium duty cylinder / tie rod type

HOME / PRODUCT / Tie rod cylinder / 3L medium duty cylinder / tie rod type / 3L-Medium Duty Cylinder I Tie Rod Design

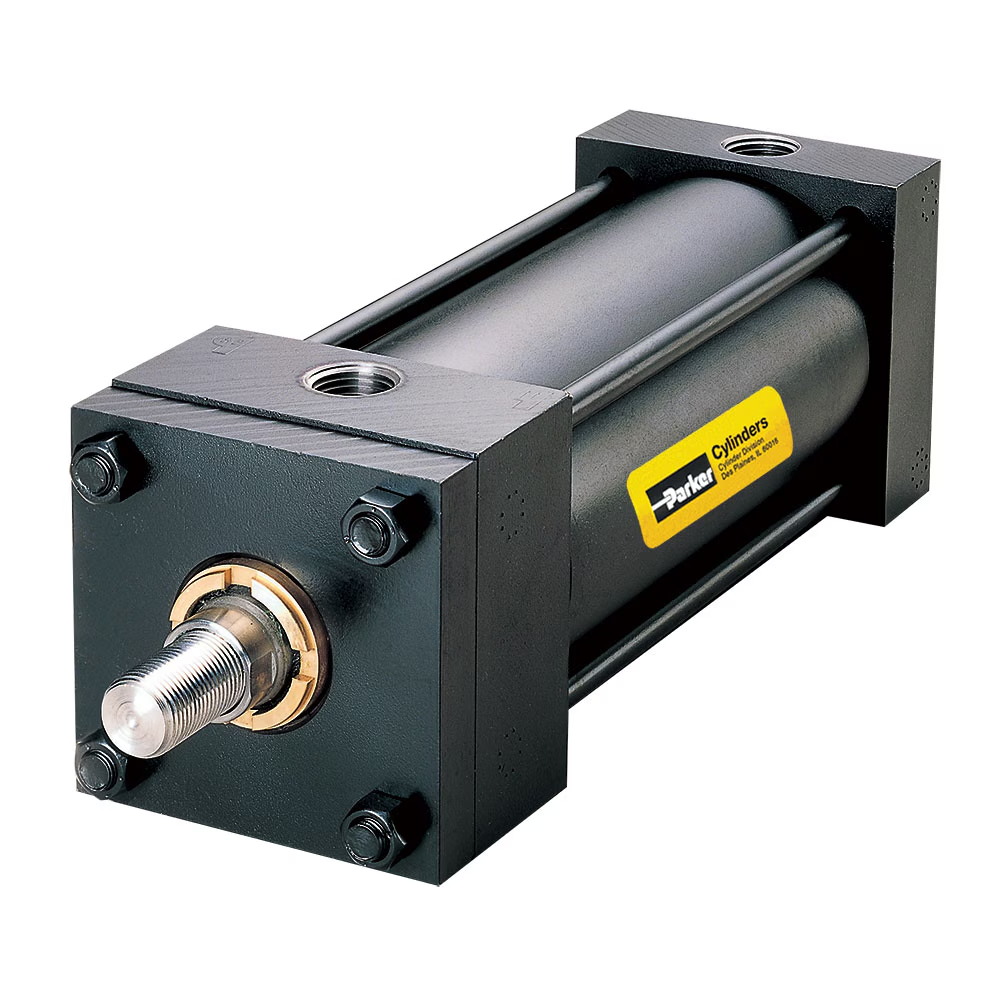

3L-Medium Duty Cylinder I Tie Rod Design

3L-Medium Duty Cylinder I Tie Rod Design

Product Parameters

Models Shown: 3 models (40–100 mm bore)

Pressure Class: 160–210 Bar

Core Value Proposition: Economical medium-duty, rapid ex-stock delivery

Contact Us
  • 3L-Medium Duty Cylinder I Tie Rod Design
PREV：No previous article
NEXT：No next article
Typical Model 3L 40/22-150 3L 63/36-300 3L 100/56-600
Standard ISO 6020/2 ISO 6020/2 ISO 6020/2
Bore Dia.(mm) 40 63 100
Rod Dia.(mm) 22 36 56
Stroke Range(mm) 30 – 300 40 – 500 60 – 800
Mounting Style Tie Rod / Foot Tie Rod / Foot / Flange Tie Rod / Foot / Flange / Clevis
Protection Dust Wiper (Standard) Dust Wiper (Standard) Dust Wiper + Rod Boot
Nominal Pressure(Bar / MPa) 160 Bar / 16 MPa 160 Bar / 16 MPa 210 Bar / 21 MPa
Static Test Pressure(Bar) 240 Bar 240 Bar 315 Bar
Cylinder Body Material 45# Carbon Steel Seamless Tube 45# Carbon Steel Seamless Tube 45# / 27SiMn Seamless Tube
Piston Rod Material 40Cr Alloy Steel 40Cr Alloy Steel 40Cr / 42CrMo Alloy Steel
Rod Surface Treatment Hard Chrome Plated (20–30 µm) Hard Chrome Plated (25–35 µm) Hard Chrome Plated (30–40 µm)
Rod Surface Finish (Ra) Ra ≤ 0.4 µm Ra ≤ 0.3 µm Ra ≤ 0.3 µm
Sealing System Parker Polyurethane + NBR Combo Parker / Rexroth-Compatible Sealing System Parker Polyurethane Combo
Operating Temp.(°C) -20 ~ +80 -20 ~ +80 -20 ~ +80
Fluid Compatibility Mineral Oil (HL / HM) Mineral Oil (HL / HM) Mineral Oil (HL / HM)
Application Scenarios General Automation, Food Packaging Woodworking Machinery, Conveyor Lines Rubber Processing, Textile Calendering
Key Features Economical medium-duty, quick delivery from stock Widely interchangeable, low TCO Upgraded 3L for higher duty cycles
